產品詳情：拾音器專用壓電電纜

        Piezo cable is another form of piezo polymer sensors. Designed as a coaxial cable, the Piezo polymer is the dielectric between the center core and the outer braid. When the cable is compressed or stretched, a charge or voltage is generated proportional to the stress.
        Piezo cable has a number of advantages in certain applications. Due to its coaxial design, the cable is selfshielded,allowing its use in a high EMI environment. The piezo cable can be spliced to passive coax, using standard coax splice techniques. It is extremely rugged and will stand up to heavy loads. Its linear format makes it ideal for monitoring large areas.

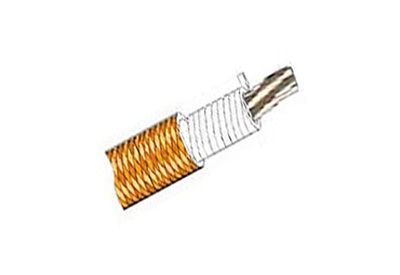

        In the cable construction, two narrow ribbons of PVDF film are helically wound around the inner conductor, which comprises 20 awg stranded silver-plated copper wire. The cable is then braided, and jacketed with an extruded high-density polyethylene.
        The cable is available in short lengths (in multiples of 1 m), or as single cut lengths wound on spools.

類        型：電纜
外        徑：1.6mm
電        容：950pF/m
耗        散：0.016@1kHz
供電電源：無源
工作溫度：-
壓電常數：20pC/N
特        點：連接簡單，電壓相應靈敏度好，耐溫達85℃，可定制長度
典型應用：樂器拾音器
