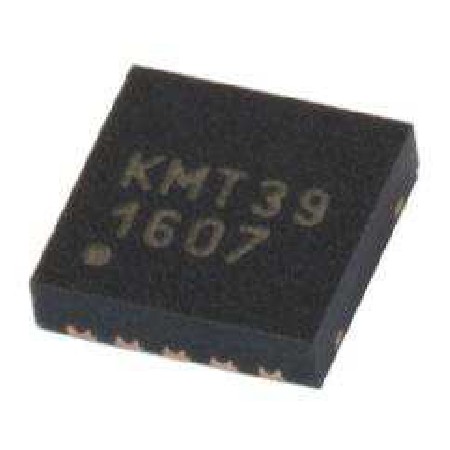

       The KMT39 is a magnetic field sensor based on the anisotropic magneto resistance effect, i.e. it is sensing the magnetic field direction independently on the magnetic field strength for applied field strengths H>25 kA/m. The sensor contains two parallel supplied Wheatstone bridges, which enclose a sensitive angle of 45 degrees.
     With reduced accuracy, the sensor KMT39 may be used with a field strength of H0 ≥ 15 kA/m (at room temperature). Most magnets show a decreasing field strength with temperature while the magnetic field direction is unchanged.

類        型： 角度傳感器
量        程： 0~180°
精  確  度： 0.2°
輸        出： 頻率輸出
供電電源： 5V
工作溫度： -40℃~+150℃
電氣連接： PC板安裝
特        點： 磁場效應
典型應用： 編碼器，電動機，方向舵，角度測量，馬達控制，機器人，相機定位，汽車，可取代電位器
