產品說明：

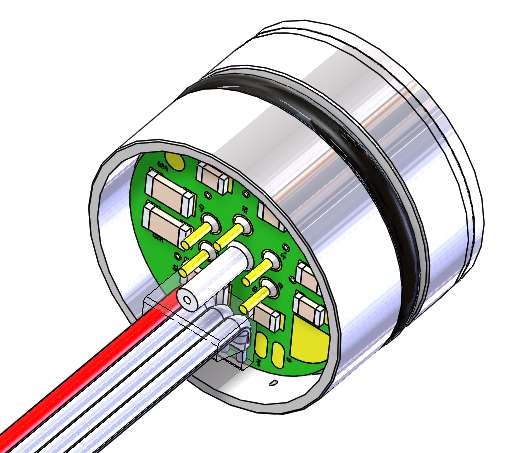

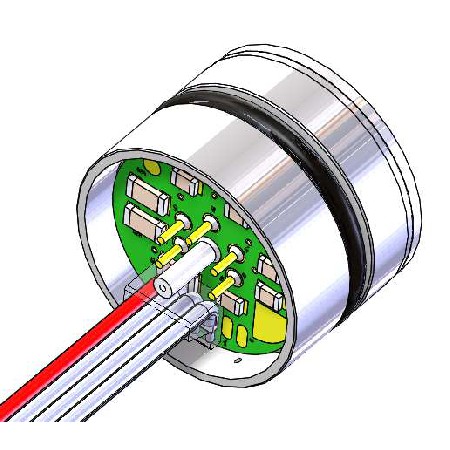

        The TEI-19 compensated is a 19 mm small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. It is designed for O-ring mounting and OEM applications where compatibility with corrosive media is required.

        The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A PCB is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction.

        For a similar sensor with same outline dimensions and similarparameters, refer to the 154N Compensated pressure sensor.

技術指標：

類       型： 表壓，絕壓
量       程： 0～5，15，30，50，100，300，500（Psi）
非  線  性： ±0.1%非線性
輸       出： 0～100mV
供電電源： 1.5mA
工作溫度：  -20℃～70℃，-40℃～125℃
電氣連接： 導線、焊盤、導線帶、導柱
特       點： O形圈密封結構，激光修正補償技術，外徑19mm
典型應用： 醫療器械，過程控制，淡水和廢水測量，制冷/壓縮機 ，壓力變送器，液壓控制裝置
