產品說明：

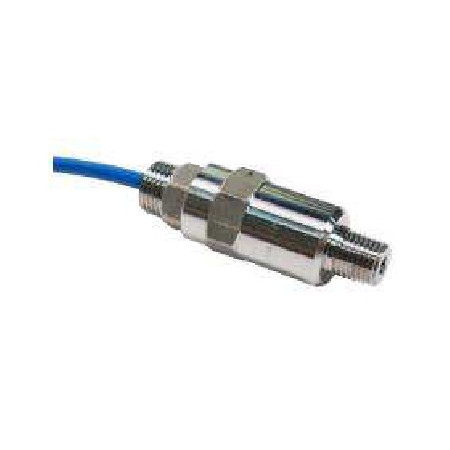

        The TEI-19D module includes an Ultra Stable piezo resistive silicon pressure sensor and an ultra-low power 24bits ΔΣ ADC with internal factory calibrated coefficients. It provides a precise digital pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high-resolution temperature output allows the implementation of a pressure/temperature function without any additional sensor.

        The communication protocol is standard I2C interface, and this module can be interfaced to virtually any microcontroller.

        Each module was calibrated in factory. it has been compensated offset, span of the measure pressure and temperature signal.

技術指標：

類        型：絕壓
量        程：0～2,5,10 bar
精  確  度：±0.2%
輸        出：數字輸出
工作溫度：-40～80℃
供電電源：2.5～3.6V
電氣連接：電纜
特        點：高精度，溫壓一體式，數字輸出，高可靠性，耐腐蝕，低功耗，優異的EMC性能
典型應用：工業過程控制氣體流量監測，管道過壓/泄露狀態監控，工業燃?xì)饬髁坑?jì)智能體積修正儀EVC
